SERVO TURRET CNC LATHE

ST46C

The ST46C is a CNC lathe equipped with a 12-station servo turret. The machine uses the latest SYNTEC control system, which is easy to operate and guarantees long and stable operation.

Techical Data

CAPACITY

Swing Over Cross Bed

Φ400mm

Turning Length

350mm

Turning Diameter

Bar Materials up to Φ45mm

Single Workpiece up to Φ380mm

Bed Type

45° Slant Bed

TRAVELS

Z Axis

350mm

X Axis

220mm

Guideway Type

32mm THK/NSK ball screw rod

35mm THK/INA linear guideway

Z/X Axis

Up to 20m/min

Machining Accuracy

±0.0025mm

Surface roughness

≤Ra 1.6μm

SPINDLE

Spindle Nose Taper

A2-5

Speed

4000 RPM

Spindle Motor Power

7.5 kW Servo Motor

11 kW Servo Drive

Clamp

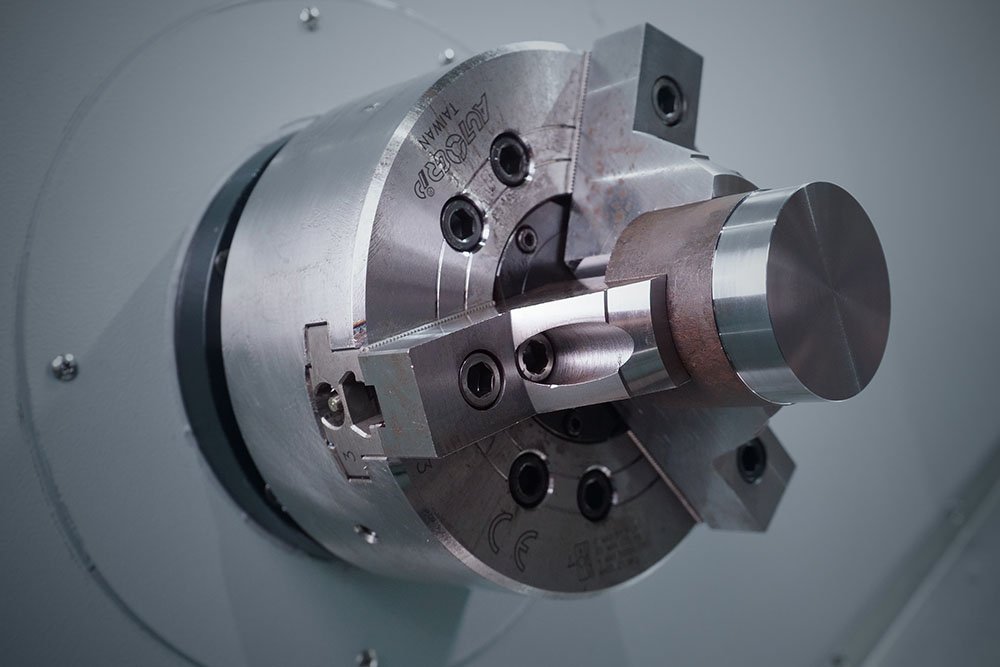

6" 3-Jaw Hydraulic Chuck

Spindle bore

Φ56mm

TOOLS

Servo Turret

12 stations

Tool holder

Inner Hole Tool Holders (4 Sets)

Outer Circular Tool Holders (1 Sets)

Motor & Servo

Z&X Axis

1.8 kW Servo Motor

2.0 kW Servo Drive

CNC CONTROL

Controller

SYNTEC

POWER SUPPLY

Total Power

18KW

Voltage

380VAC 50Hz

DIMENSIONS

Dimensions (L/W/H)

1950mm*1550mm*1800mm

Weight

3000 kg
Features

  • The patented slant bed design increases the X-axis travel to 220mm and Z-axis to 350mm reducing the lathe size and stability.

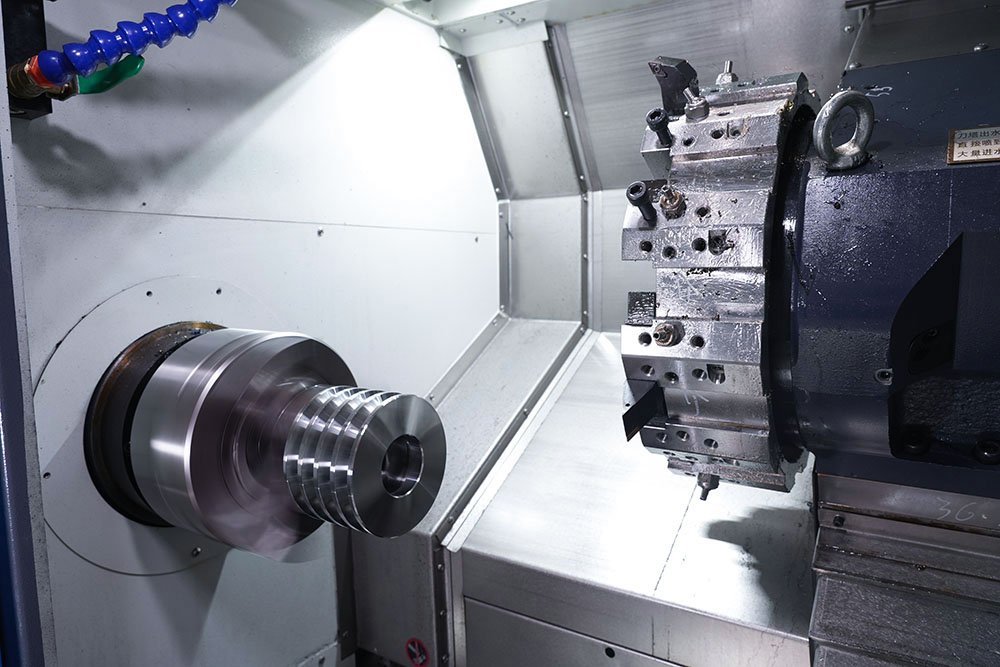

  • Equipped with a 12-station servo turret, high rigidity cutting, Processing of complex multi-process products such as drilling and tapping.

  • Each spindle bearing assembly was tested for dynamic balance before installation to ensure high-speed running stability.

  • Equips with Taiwan 32mm ball screw rod rail and 35mm linear guideway to provide precision and low vibration tool carriage movement.

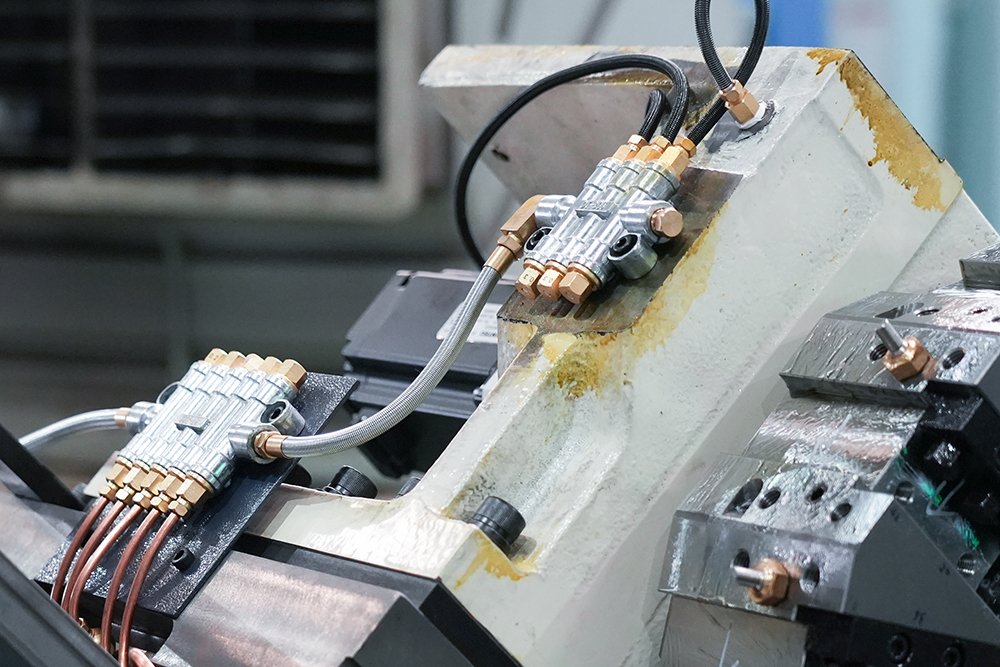

  • Equips with auto lubrication system to ensure transmission system smoothly and long-lived.

  • SYNTEC CNC system co-works with quality electrical parts providing a rapid-operation and durable use.
Optional
Oil Bar Feeder
Servo Bar Feeder
Chain Chip Conveyor
Part Catcher
Oil Mist Collector
Fanuc CNC Syetem
Electric Spindle

Application

Competent to handle the turning process with brass, bronze, aluminum, steel, stainless steel, and rigid plastic with bars diameter up to Φ45 mm or single workpieces up to Φ380mm. High Rigidity casting iron body provides the possibility of higher hardness materials and better smoothness (smaller roughness).
